Horizontal Lathes
Hwacheon's horizontal lathes offer outstanding performance data that is unmatched in their class. Users with versatile machining tasks will find the ideal solution here for both small and large workpieces.
Universal Lathes (Flat Guides, Gearbox)
The HI-TECH series is characterized by its solid machine beds, wide flat guides, and powerful drives. It is ideal for tough, hard materials with high chip removal volumes and precision requirements.
The series covers chuck sizes from 200 to 800 mm and turning lengths up to 5 m. Workpiece weights of up to 4 tons can be machined.
Perfect for Difficult-to-Machine Materials!
When it comes to machining challenging materials, interrupted cuts, and high chip removal rates, the HI-TECH series is the ultimate solution. Known for its precision and exceptional surface quality, the HI-TECH series impresses with outstanding performance and reliability.
The Strengths of the Hi-TECH Series
- Extremely robust lathes with flat guides / box guides for heavy-duty machining. Flat guides are characterized by excellent damping properties, absorbing vibrations during the machining process and dissipating them into the machine bed.

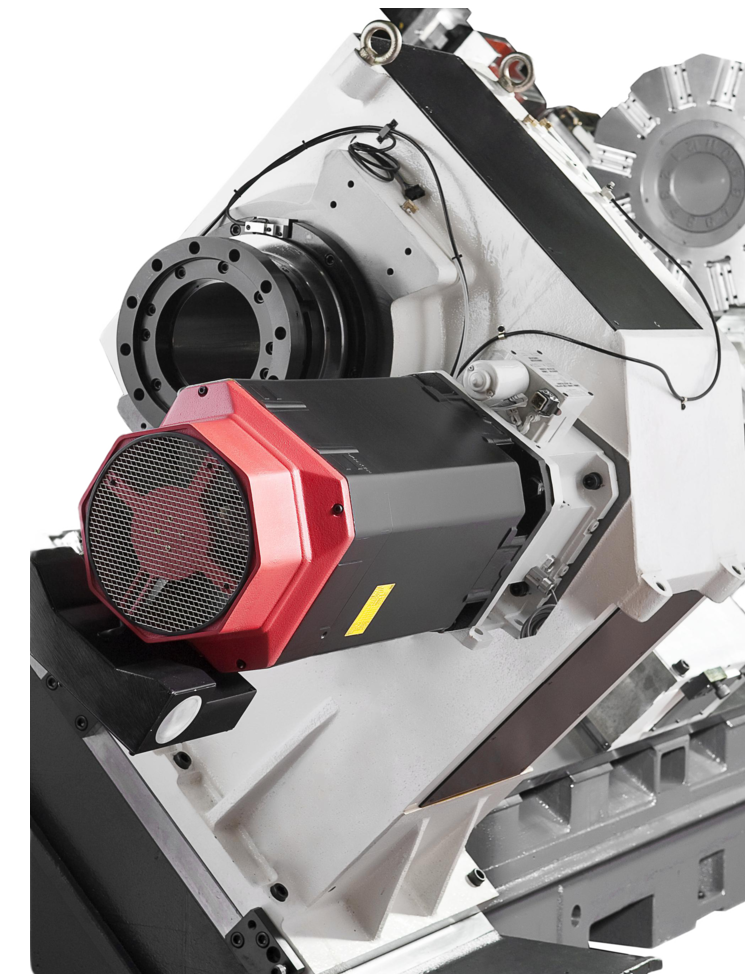

- Gearbox spindles deliver high torque and are ideal for demanding machining processes. Optimal utilization of cutting speed is enabled by the correct gear ratio. Large bearings and shaft diameters ensure stable absorption of process forces and a long service life.
- Experience unmatched precision and durability with Hwacheon’s Meehanite-cast machine beds, which absorb vibrations, ensuring superior surface quality and extended tool life. Manufactured in our state-of-the-art foundry and supported by top-tier craftsmanship, our products guarantee exceptional performance that pays off for our customers.
What Our Customers Say
Hyss Metallbearbeitung in Lennestadt, Germany, specializes in machining large and heavy turned, welded, and cast parts.
Since the first machine delivered very good experiences, "it was clear," said Gerhard Hyss, "that the next machine had to come from Hwacheon too."
| Max. Turning Diameter [mm] | Turning Length(s) [mm] | |
|---|---|---|
| Hi-TECH 200 / Hi-TECH 230 | ~ 350 / 425 | ~ 380 - 1,100 |
| Hi-TECH 450 | ~ 420 - 500 | ~ 700 / 1,360 / 2,250 / 3,250 |
| Hi-TECH 550 | ~ 590 mm | ~ 1,100 / 2,100 / 3,200 |
| Hi-TECH 650 | ~ 600 mm | ~ 1,100 / 2,100 / 3,200 |
| Hi-TECH 700 | ~ 680 mm | ~ 2,000 |
| Hi-TECH 750 | ~ 760 mm | ~ 2,250 / 3,250 / 4,350 |
| Hi-TECH 850 | ~ 920 mm | ~ 2,500 / 3,500 / 5,100 |
Also Available as BigBore Version
The BigBore models (BB and BB+) of the flat-guide-based lathes Hi-TECH 550, Hi-TECH 700, and Hi-TECH 850 are characterized by their extra-large spindle bore (Big Bore), which allows clamping of diameters from 190 - 370 mm in the spindle. Hollow spindle diameter by model:
| Model | Hollow Spindle Diameter [mm] |
|---|---|
| Hi-TECH 550BB | Ø180 |
| Hi-TECH 700BB / BB+ | Ø180 / 295 |
| Hi-TECH 850BB / BB+ | Ø295 / 370 |
Universal Lathes (Linear Roller Guides)
Discover the CUTEX lathes – the perfect combination of innovative technology, high dynamics, and universal applicability. Whether for machining steel, non-ferrous metals, or plastics: The CUTEX series masters even the most demanding cutting conditions with impressive productivity.
More Precision. More Power. More Success.
Die CUTEX-Baureihe umfasst die Modelle CUTEX-160, CUTEX-180 und CUTEX-240 – gebaut für höchste Anforderungen. Dank ihrer Linearrollenführungen in allen Achsen und des stabilen 12-fach BMT-55-Revolvers mit 24 indexierbaren Stationen überzeugen diese Maschinen durch Präzision und Zuverlässigkeit. Ihre kompakte Bauweise kombiniert mit ergonomischem Design sorgt für eine optimale Nutzung Ihrer Produktionsfläche.
Advantages and Strengths of the CUTEX Series at a Glance!
- Linear roller guides in all axes for maximum precision and stability.
- 12-station BMT-55 turret with 24 indexable positions for maximum flexibility.
- Compact footprint with an ergonomic and elegant design.
- High drive power for exceptional productivity – even under challenging conditions.
- Made by Hwacheon: Premium manufacturing quality from Korea.
Your Solution for Powerful and Efficient Manufacturing.
Combined with Hwacheon’s outstanding “Made in Korea” manufacturing quality and an attractive price-performance ratio, the CUTEX lathes are the ideal solution for modern manufacturing operations. Let the dynamics, flexibility, and performance of these machines inspire you and take your production to the next level.
Turning Center with B-Axis and Milling Spindle
i2: Ultimate Precision in Every Dimension.
Master even the most demanding machining tasks with the turning-milling machining center i2. Precision, stability, and efficiency – all combined in a single machine “Made by Hwacheon”.
High-performance spindles with 12,000 or 20,000 RPM and up to 22 kW drive power (HSK T63 / CAPTO C6)
The turning-milling machining center i2 impresses with state-of-the-art technology and outstanding stability. Equipped with a B-axis with an integrated milling spindle and a linear roller-guided Meehanite cast bed, the machine offers an exceptional combination of precision and robustness.
The milling spindle, developed and manufactured by HWACHEON, delivers an impressive 22 kW of drive power and reaches up to 12,000 rpm (optionally 20,000 rpm). Thanks to the Hirth coupling, the B-axis can be clamped in 5° increments or continuously positioned, enabling both 5-axis simultaneous machining and highly stable roughing and drilling operations.
Hwacheon quality is evident in every detail.
The heavy Meehanite cast bed, preloaded ball screws, minimized thermal displacement, and high-quality components guarantee maximum precision and durability. “Made in Korea” at Hwacheon stands for maximum production depth, innovation, and reliability – for efficient and precise manufacturing in a single setup.
- B-axis with integrated milling spindle for maximum flexibility and precision
- Hirth coupling: clamping in 5° increments or continuous positioning
- Linear roller-guided Meehanite cast bed for exceptional stability
- Milling spindle with up to 20,000 rpm and 22 kW drive power – developed in-house by Hwacheon
- Made in Korea – Made by Hwacheon: durable components and precise workmanship
- Automatic tool magazine for 40 or 80 tools (HSK-T63 or CAPTO C6)
| i2 | ||
|---|---|---|
| Chuck sizes | [mm / inch] | 200 / 8 |
| Max. turning diameter | [mm] | Ø 600 |
| Max. turning length | [mm] | 630 |
| Max. bar capacity | [mm] | Ø 65 |
Cycle-Controlled Lathes
MEGA Series: Precision for Every Challenge.
The MEGA series is specially designed to offer maximum flexibility and efficiency even for the smallest batch sizes and demanding repair tasks. With a turning diameter of up to 2,700 mm, a workpiece length of up to 17 meters, and a weight of up to 40 tons, these machines are unbeatable when it comes to machining large and heavy components. Manual operation via handwheel allows for easy handling just like a conventional lathe – ideal for reworking and repairs. Thanks to numerous configuration options and a wide range of controls and equipment, the machines are tailored exactly to your requirements.
The flat-bed lathes of the MEGA series combine state-of-the-art NC technology with classic handwheel operation and are the perfect solution for single-part production, repair work, and machining of large and heavy workpieces.
Machine beds from 2 to 8 meters in length and hollow spindles up to 320 mm.
MEGA-72
- Swing diameter over bed: 720 mm
- Max. turning diameter: 470 mm
- Bed length(s): 2 / 3 m
MEGA-110
- Swing diameter over bed: 1,180 mm
- Max. turning diameter: 800 mm
- Bed length(s): 3 / 4 / 5 / 6 m
MEGA-130
- Swing diameter over bed: 1,300 mm
- Max. turning diameter: 920 mm
- Bed length(s): 3 / 4 / 5 / 6 / 7 / 8 m
Large Lathes
Flat-bed lathes for large workpieces (2,000 / 2,700 mm): MEGA-II 200 / 270
- NC control and handwheel operation: flexibility for single-part production and repairs.
- Bed lengths from 3 to 10 meters and customizable gear stages for maximum individualization.
- Large workpiece capacity: Up to Ø2,700 mm, 17 m in length, and 40 t in weight.
- Versatile equipment: tailstock with servomotor, cylindrical grinding attachment, NC C-axis, and more.
- State-of-the-art controls: Siemens (828D, 840D) and Fanuc (0i, 31i).
Machine beds from 4 to 17 meters and up to 40 tons workpiece weight.
Twin Turret Lathes
T2 – for maximum productivity and precision.
The T2 is designed for the highest demands in series production. With two turrets, each featuring 12 tool stations (BMT-65) and a switching time of just 0.1 seconds per station, it enables parallel operations and minimizes idle time. The integrated spindle motor with 477 Nm torque, combined with the FEM-optimized machine bed, ensures high material removal rates and maximum tool life. Thanks to actively cooled drives, the T2 remains precise even during multi-shift operations. With its ergonomic design and numerous configuration options, the T2 perfectly adapts to your requirements.
The twin-turret lathe T2 combines maximum precision, dynamics, and efficiency in a minimal footprint. With its powerful features and innovative automation options, it is the ideal choice for producing complex workpieces in high volumes.
The high torque of the integrated 477 Nm spindle motor (65 mm bar capacity) and the excellent damping properties of the machine bed enable high cutting rates and extended tool life.
- Twin turrets with 12 tool stations each for parallel operation
- High drive power of 7.5 kW and 477 Nm torque
- Fast switching time of 0.1 seconds per tool station
- Active cooling of all drives for precision in continuous operation
- Compact design with extensive automation options
Conventional Lathes
The HL series from Hwacheon, known for 70 years of experience in manufacturing high-quality and durable conventional lathes, offers exceptional user-friendliness and top-tier machining quality: Conventional lathes of the HL series.
HL-950: Ø950 (3,000 / 4,000 / 5,000 / 6,000) mm
HL-580: Ø580 (1,500 / 2,000) mm
HL-720: Ø720 (1,850 / 2,850) mm
HL-460: Ø460 (920 / 1,420) mm
HL-380: Ø400 (720) mm
Technical specifications: max. swing diameter over bed [mm] (turning lengths [mm])
Front - Twin Spindle Lathes
TTC-10: Power, Precision, Reliability.
The TTC-10 is the ideal choice for heavy-duty machining of tough and hard materials. With two spindles, two work areas, and robust box guideways, it meets even the most demanding requirements – whether operated manually or in automated mode.
The TTC-10 was specifically developed for machining tough materials such as titanium and nickel-based alloys as well as hardened steel. Equipped with two 12-station turrets and separate work areas, it offers maximum efficiency and flexibility. The wide Turcite-coated box guideways and the massive machine bed ensure maximum stability and precision, even under heavy-duty conditions. Optimal chip removal and numerous software features make the TTC-10 a reliable solution for continuous operation, ideal for integration into automated production processes.
The solution for the toughest machining requirements.
- Two spindles and two work areas for parallel operation
- Wide Turcite-coated box guideways for maximum stability
- Perfect for hard-to-machine materials such as titanium and hardened steel
- Optimal chip removal for maximum efficiency in continuous operation
- Suitable for automated operation with gantry loader
